Product Description
Vibration test system is mainly used for products vibration and shock environment test, environmental stress screening test, reliability test. Electromagnetic vibration tester completely according to the standard of battery related testing design, simulation under the certain condition of the vibration test of battery, the battery or battery pack is fixed on the vibration table, according to the prescribed frequency, acceleration and displacement mode along the battery sample vibration of three mutually perpendicular direction measured battery should not leak, don't lose heart, not broken, no fire and explosion. Vibration test of the application scope is extremely broad, from circuit board, battery, plane, ship, rocket, missile, cars and home appliances and other industrial products.
Specification

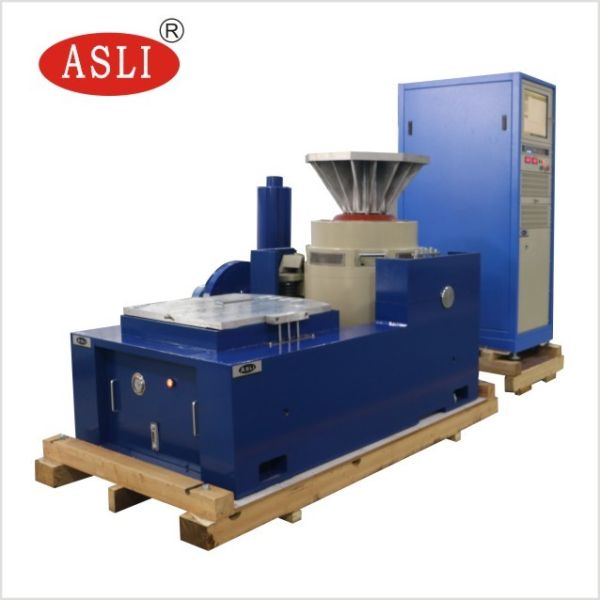

| Vertical & Horizontal High Frequency Random Vibration Testing Equipment Parameters: |
| Maximum sine excitation force | 5000Kg.f peak |
| The biggest random vibration force | 5000Kg.f r.ms |
| The biggest shock vibration force | 10000Kg.f peak |
| Frequency Range | DC~4000 Hz |
| Maximum displacement | 75mm p-p(peak-to-peak value) |
| Maximum speed | 1.8m/s |
| Maximum acceleration | 100G(980 m/s2) |
| First resonant frequency | 3500Hz |
| Maximum load | 750kg |
| Moving coil diameter (working mesa diameter) | Diameter of 450 mm |
| The quality of moving coil | 50kg |
| Maximum load | 750Kg |
| Mesa of screw | 13 x M8 |
| Magnetic flux leakage | <10gauss |
| Dimension | 800mm x 800mm x 800mm(Vertical machine) |
| Weight | About 1500Kg |
| The Servo System |
| Function | Temperature, air pressure, displacement, over voltage, over current, input under-voltage, external fault, control power supply, logic, lack of equal input. |
| Digital Vibration Controller |
| Hardware configuration | 2 Channel Input,1 Channel Input |
| Control computer | Original lenovo computers,liquid crystal display(With the keyboard/optical mouse) |
| Software | Chinese/English operation, the time domain and frequency domain analysis, signal source, sine sweep frequency analysis, etc. WORD can automatically generate test reports, signals and data display, storage, set up the test parameters and the analysis of the function. |
| Operating system | Windows 2000/ XP |
| Acceleration sensor B&W | frequency domain:1—2000Hz sensitivity:50mv/g temperature range:-24 - 250℃ |
| Electrical Requirement |
| Electrical source | 3 phase,380V/50Hz |
Main Features
* An air-cooled electro-dynamic shaker
* Vibration controller and power amplifier structured into all-in-one cabinet
* Achieving 2400 newton’s peak sine thrust.
* X,Y, Z 3 Axis Testing
Control Functions
* Fixed-frequency sinusoidal vibration
* Swept vibration * Random vibration
* Classical shock
Typical system applications
* Environmental test
* Stress screen test
* Vibration Testing
User Benefits
* Easy installation can be done by user
* User interface: lcd touch screen for local mode and pc-windows (thru ethernet) for remote
mode;
* Local mode: quick start a pre-defined test, dozens of test specifications can be stored;
* Remote mode: all operations of the system, including test defining and store the test specifications onto mostar, test control, test data review and documentation.
